BAILEY METAL PRODUCTS LTD

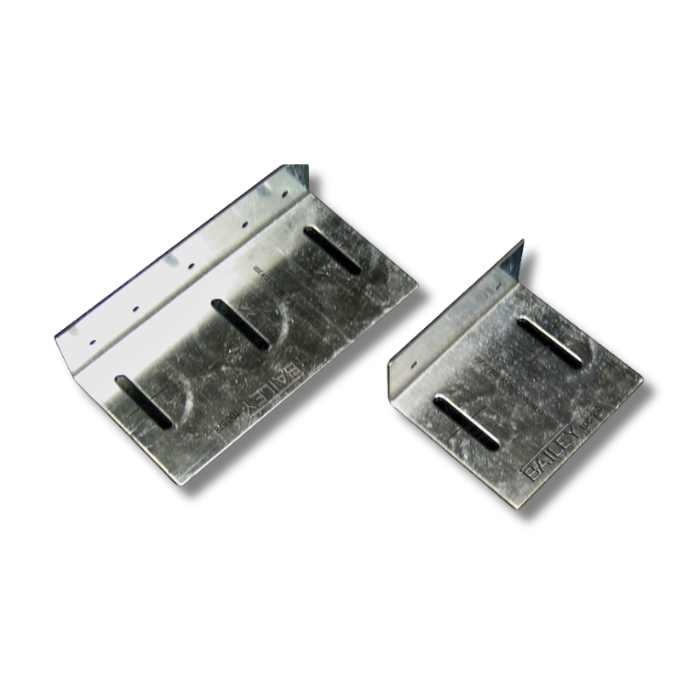

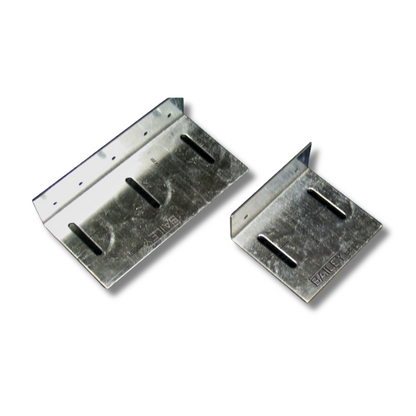

TOP DEFLECTION CLIP 5 7/8 25CLIPS/BOX

Store SKU# CLIPTDC587

$266.00
$266.00
-Liquid error (snippets/price line 128): divided by 0% OFF Unavailable

Out of Stock (Pre-Order Available)

Unit of Measure

Description

Used on exterior curtain wall studs to allow for building structure deflection at the top of the wall. Top Deflection Clips can also be used for non-load-bearing interior wall requirements. Allows for up to 1.5" deflection (0.75" in each direction).

Top Deflection Clips can be attached to the structure using power actuated fasteners (PAF), screws, concrete anchors or by welding, depending on the base material of the structure and as specified by the engineer of record and outlined on the engineered shop drawings.

Features

  • Designed with pre-punched holes to ensure correct fastening locations.
  • Can be used with slotted track where required.
  • Allows vertical movement between the structure and wall framing.
  • Packaged 25 clips per box for convenient handling and storage.

Item Attributes

Base Steel Thickness 68 Mils

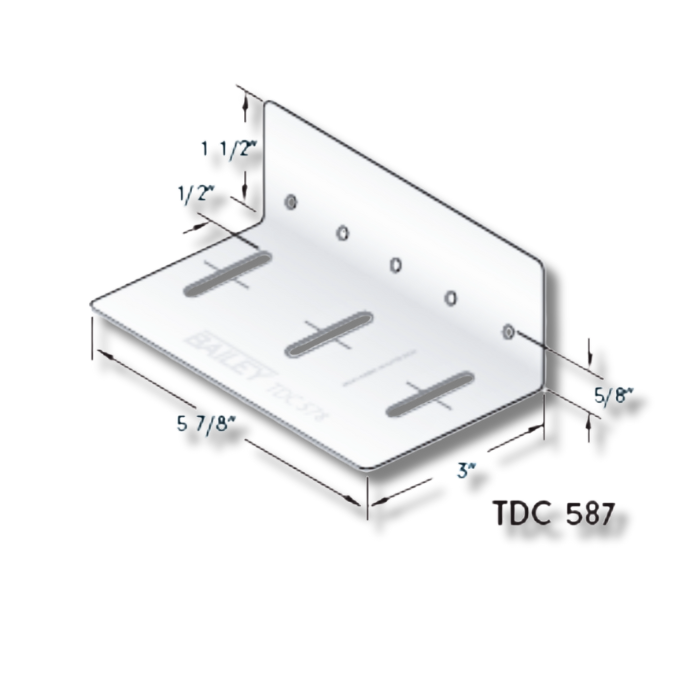

Size (in) 5 7/8
Packaging 25 Clips / Box
Yield Strength KSI 50
Coating G90
