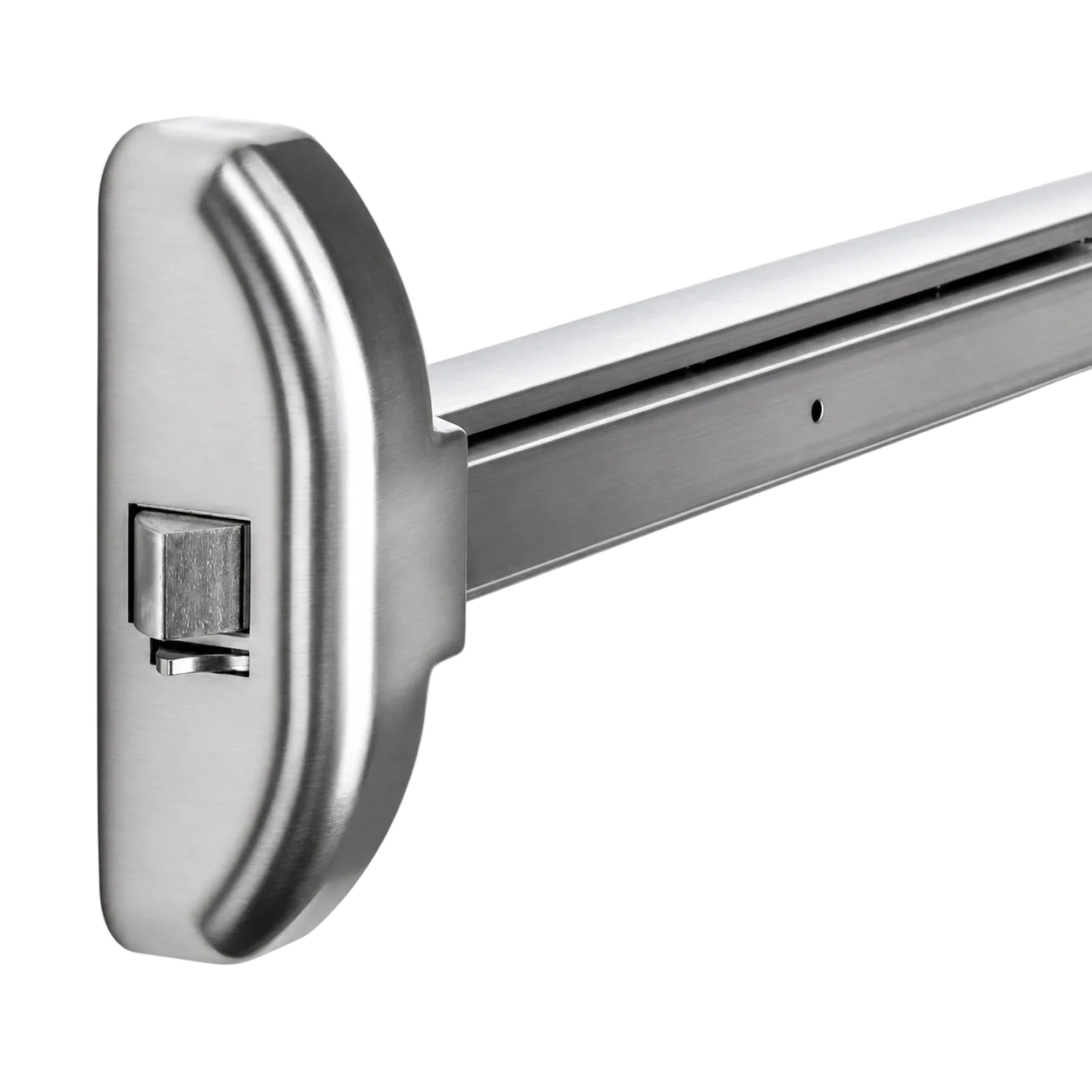

DOREX - RIM EXIT DEVICE AL/689

Description

The 8500 C28 Rim Exit Device is a durable and reliable panic hardware solution designed for commercial doors requiring safe and efficient egress. Built with a strong steel rail assembly and finished in aluminum painted C28, this device offers a clean, modern look while maintaining dependable performance. It is field sizable for flexible installation and is non handed, making it easy to install on a variety of door configurations. Suitable for non fire rated doors between 36 inch and 48 inch wide, this exit device is ideal for retail, industrial, and institutional applications where safety and code compliance are essential.

Features

• Grade 2 certified to ANSI BHMA A156.3 standards
• cULus listed for panic exit applications
• Steel rail assembly with aluminum painted C28 finish
• Field sizable for adjustable door widths
• Non handed design for easy installation
• Compatible with doors 36 inch to 48 inch wide
• Supports door heights up to 96 inch
• Fits standard door thickness of 1 3/4 inch
• Stainless steel latchbolt with 3/4 inch throw and deadlatch function
• Includes standard cast iron strike 8000S
• Hex key dogging available for panic exit models
• Compatible with multiple trim options including lever, knob, and pull trims
• 1 year limited warranty
