DOREX - GRIPSET 8500 EXIT DEVICE,#4 FUNC

Description

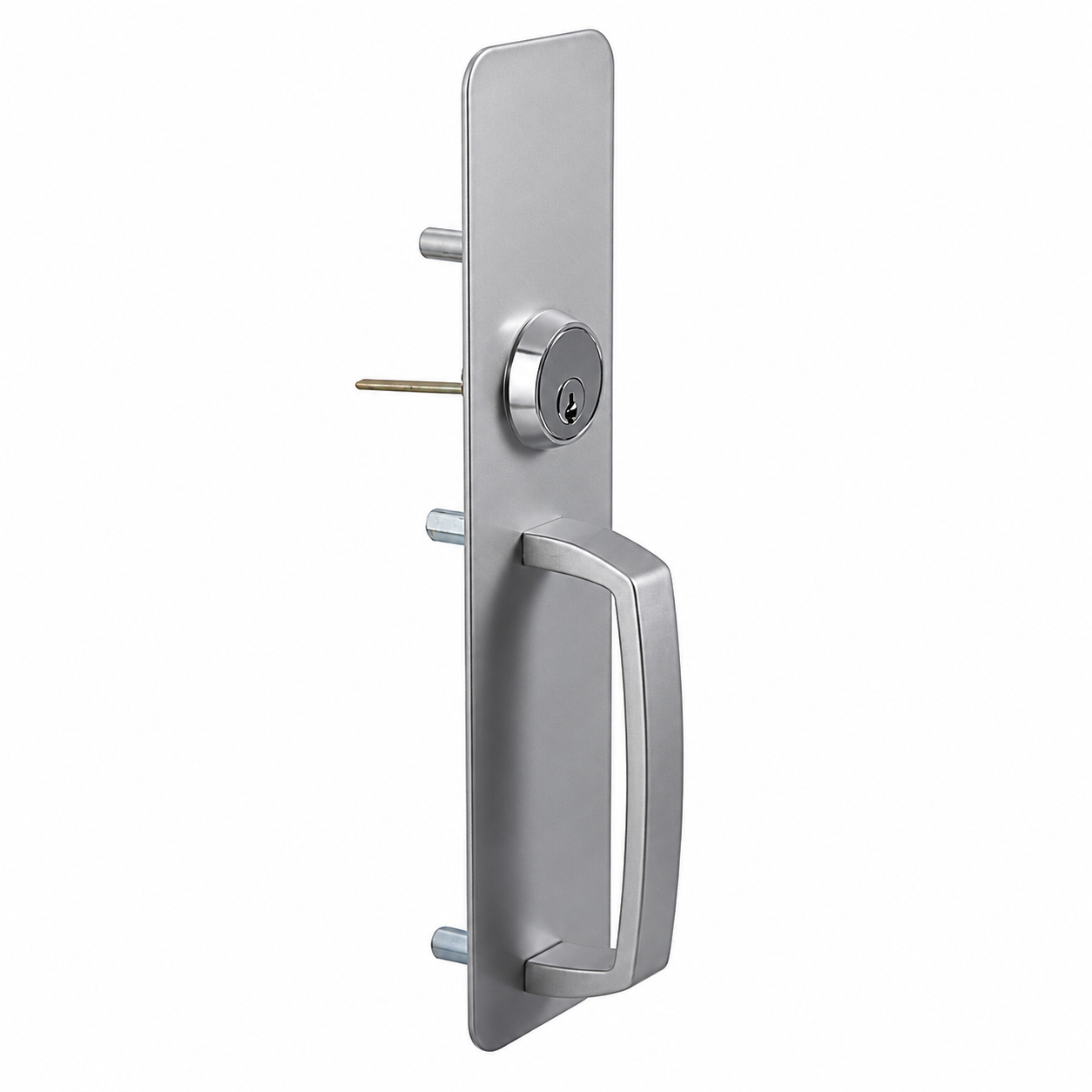

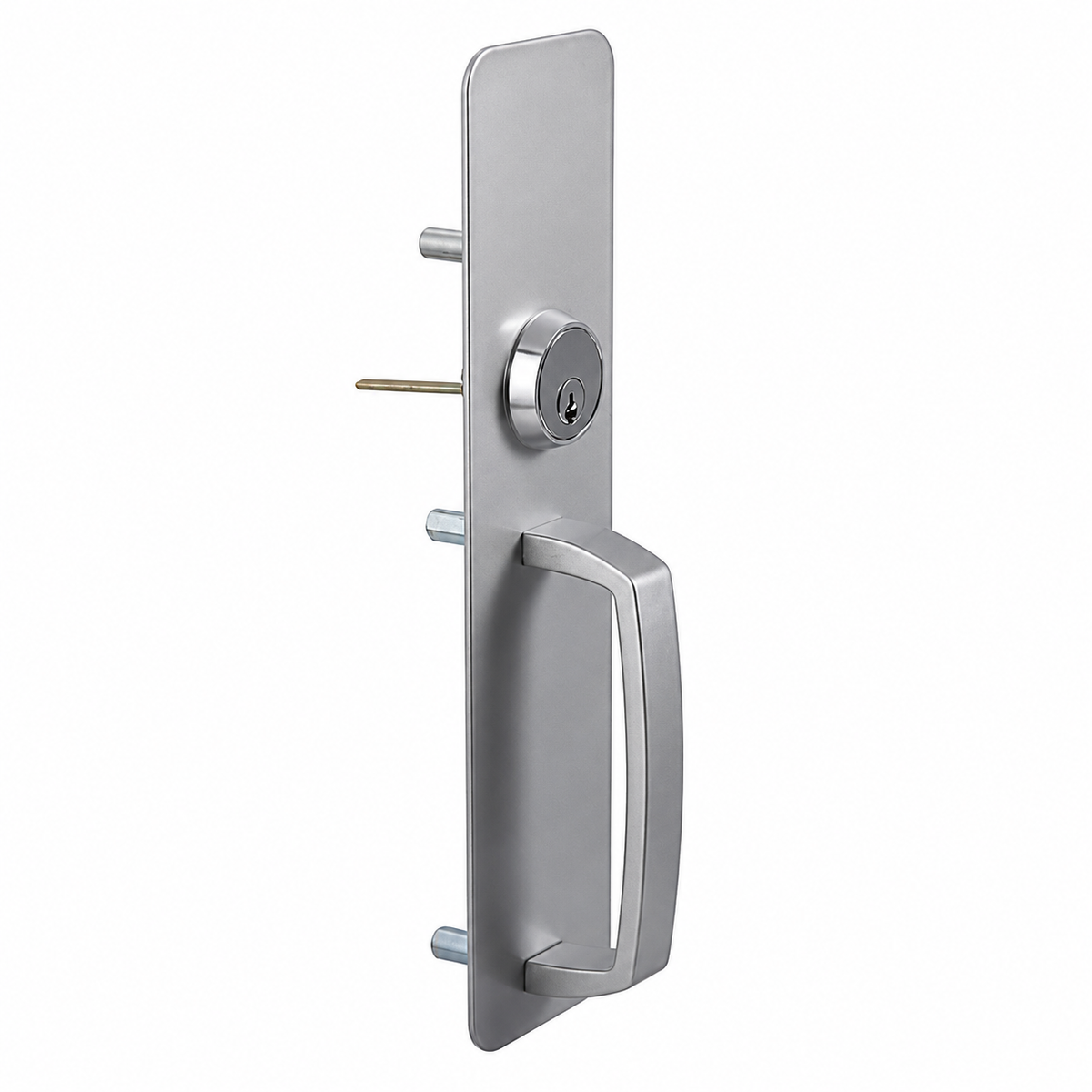

The 8504C28 is a commercial-grade exit device trim featuring a clean aluminum finish and durable construction. Designed for reliability and everyday use, this trim offers a sleek pull handle mounted on a narrow backplate, making it ideal for high-traffic doors in commercial or institutional settings. It supports multiple functions including passage, storeroom, and keyed entrance, providing flexibility depending on application needs. Built to pair with exit devices, it ensures secure access control while maintaining a modern, professional appearance.

Features

• Aluminum finish (C28) for a clean, contemporary look
• Compatible with passage (#3), storeroom (#4), and keyed entrance (#5) functions
• Solid brass, 6-pin cylinder with Schlage C keyway
• Includes 2 keys, with optional keying services available
• Durable pull handle design for high-traffic use
• Plate size: 12 1/4 in x 3 in (311 x 76 mm)
• Pull projection: 5 5/16 in (151 mm)
• Standard door thickness: 1 3/4 in (44.5 mm)
• Projection: 1 13/16 in (46 mm)
• 1 year limited warranty
